Description

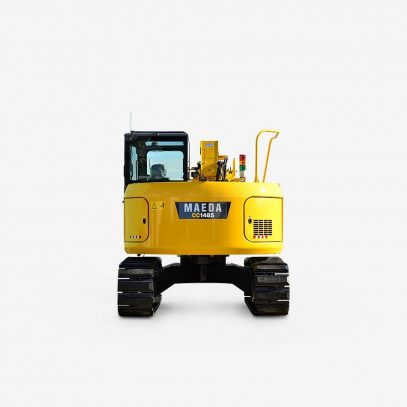

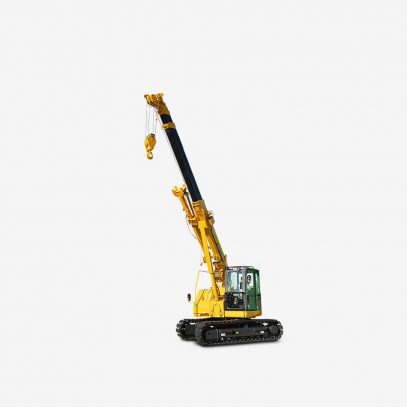

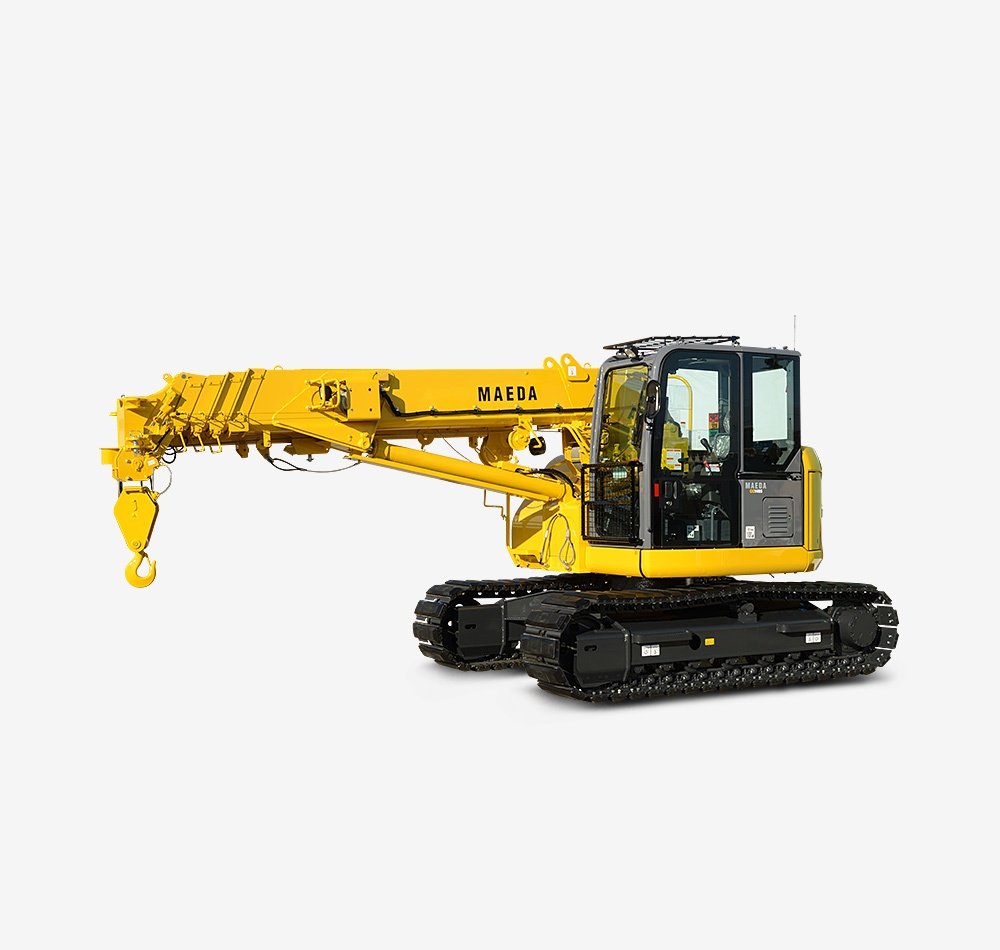

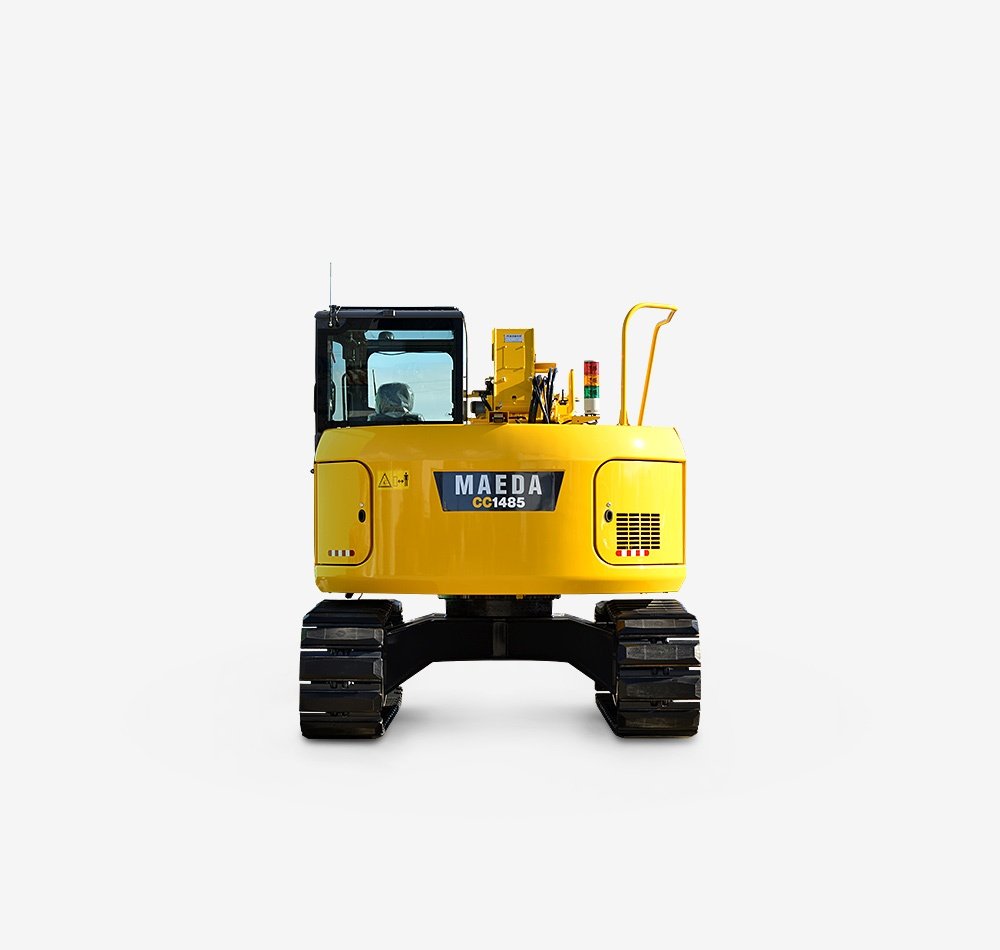

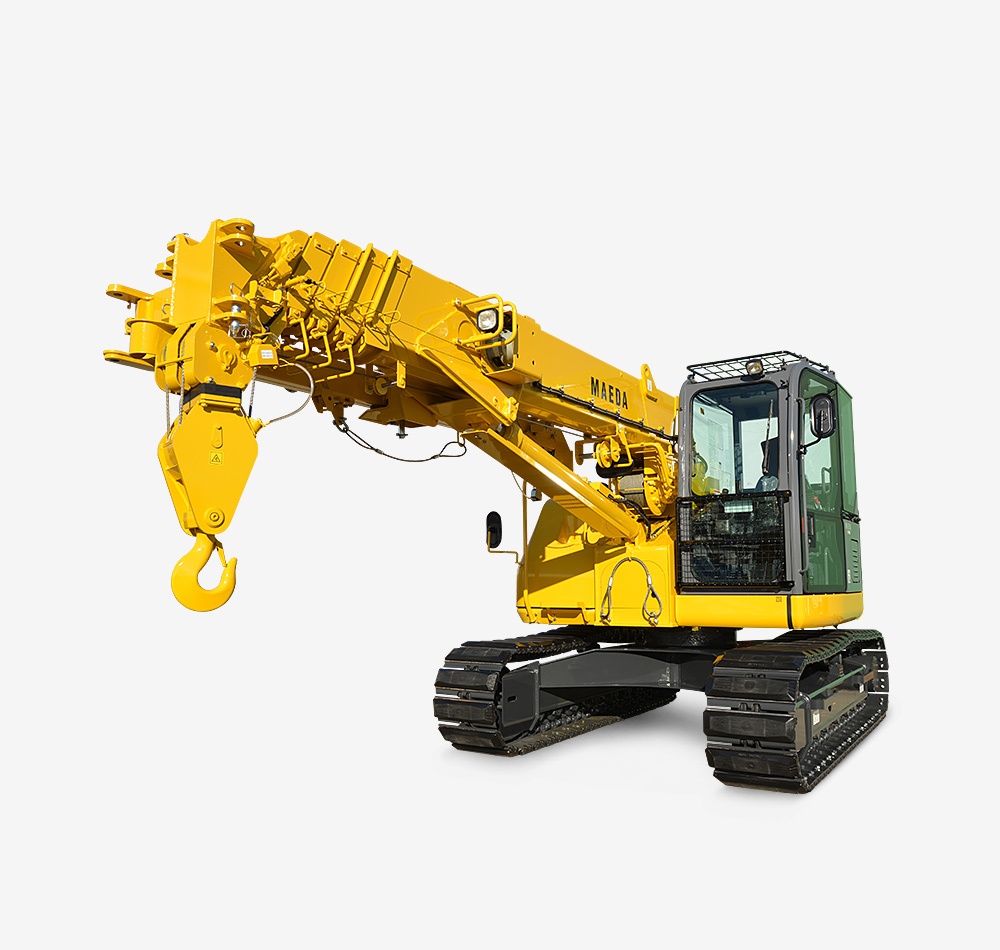

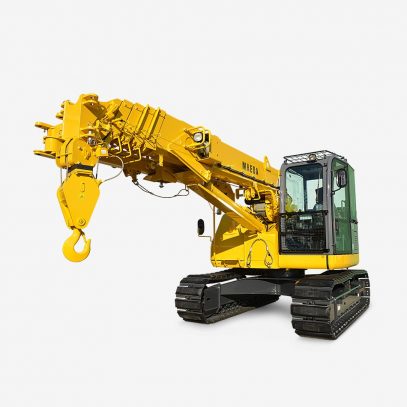

CC1485S-1 Mini Crawler Crane
Lifting Capacity 6.0t x 2.6m
Dimensions: 6,560 x 2,490 x 2,865 mm
Pick and Carry: 2,000kg

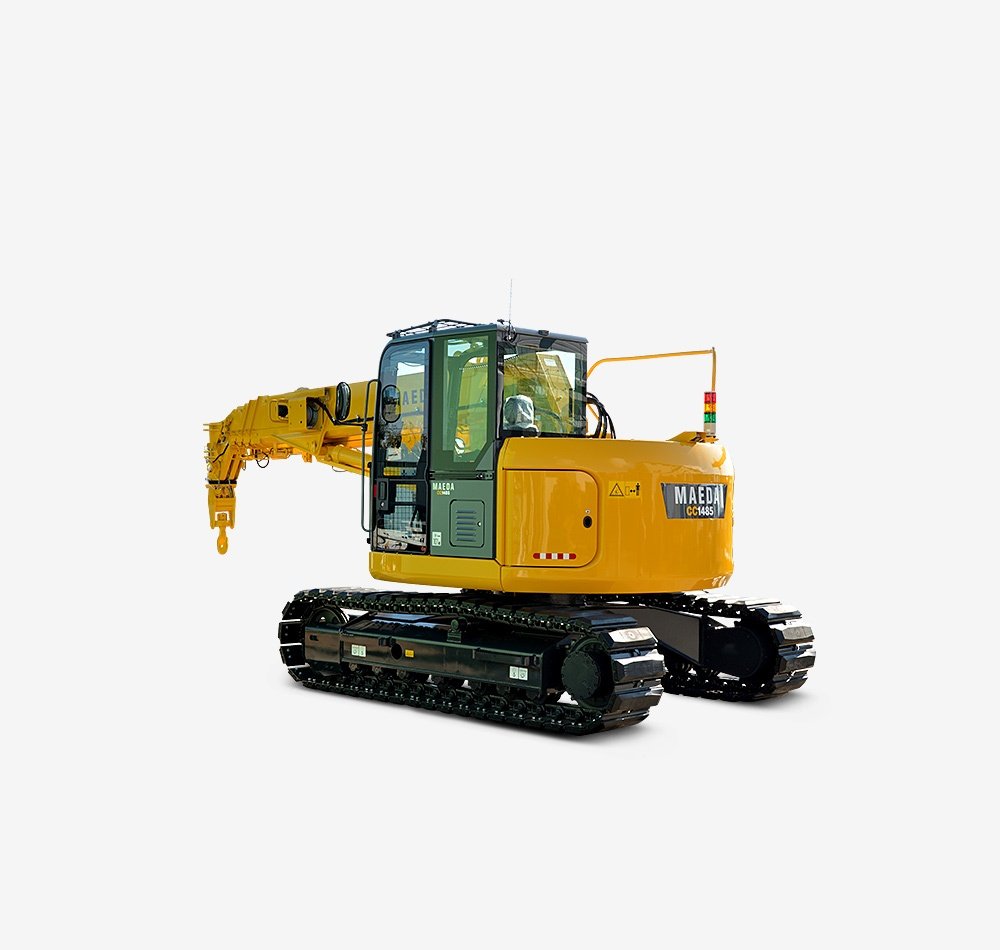

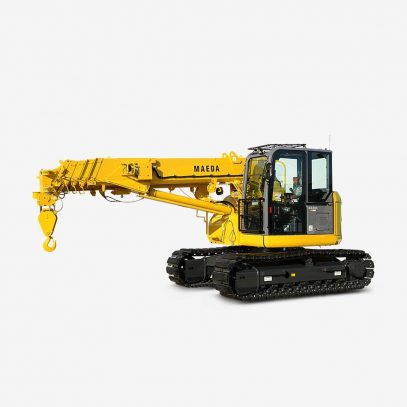

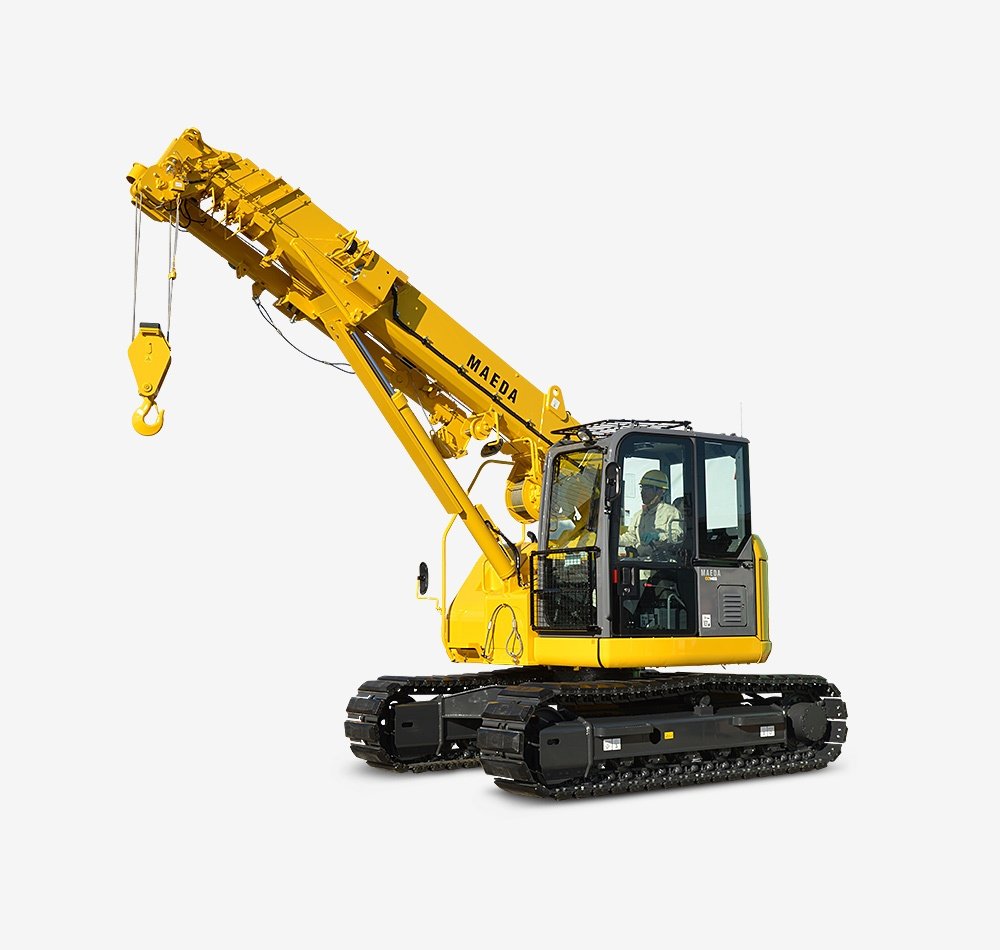

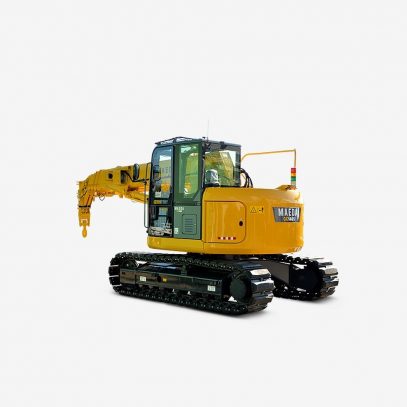

CC1485S-1 Mini Crawler CraneThe Maeda CC1485S-1 telescopic crawler crane with compact body can travel into places with even the most difficult and restricted access. There is no need to set outriggers, and 360 degree continuous slewing is available with near-zero tail swing, so slewing work can easily be carried out in confined spaces. Underground construction is one of the most popular applications. With 6t capacity, powerful and stable lifting work can be easily achieved. See details of the Maeda CC1485S-1 telescopic crawler crane and contact us for pricing details.
Capacity
6.0t X 2.6m
Max. working radius
16.10m
Max. Lifting Height
16.7m (22.0m with fly jib)
Max. reach below ground level
-24.5m (4 falls)/-50.5m (2 falls)/-103.5m (single fall)
Main Boom Telescopic System
Type
Fully automatic 5-section pentagonal telescopic boom
Boom Length
4.745 -16.265m
Boom telescoping stroke/time
11.52m/33sec
Boom Hoist System – Hoist angle/time
-4 – 80deg/19sec
Ground pressure
0.513kgf/cm2
Swing System – Hoist Angle/Time
360deg/1.9rpm
Engine
ISUZU 4LE2XDPC

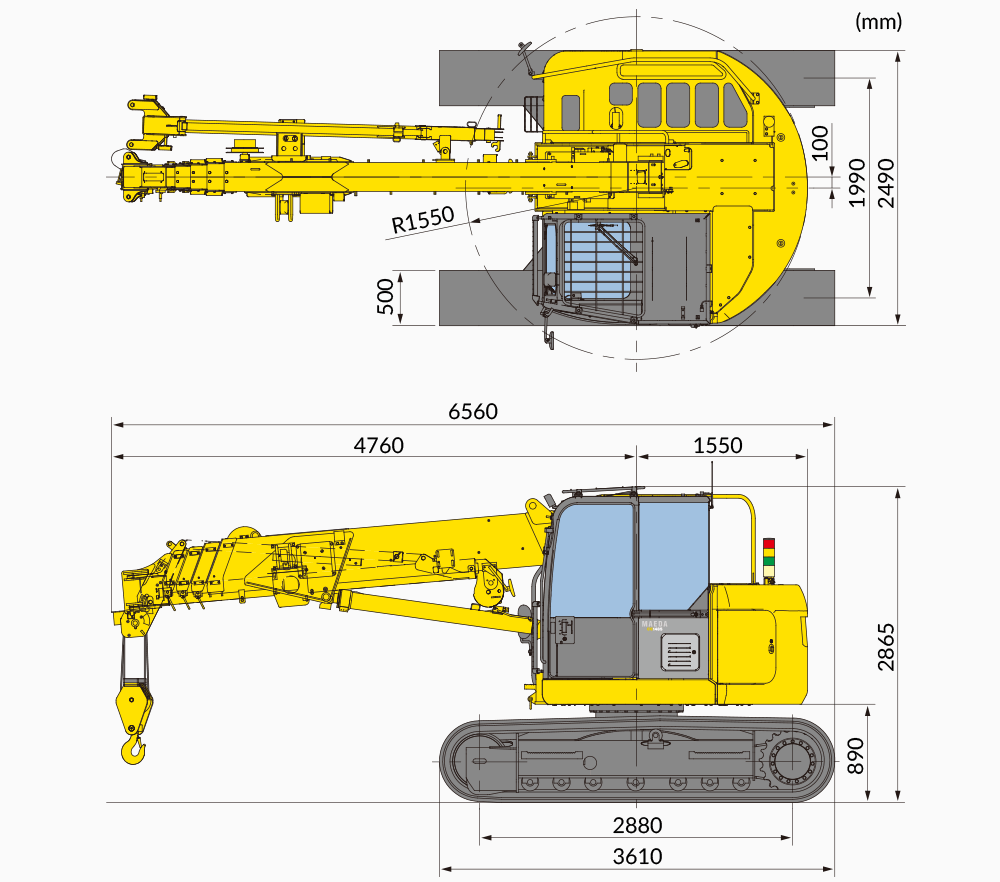

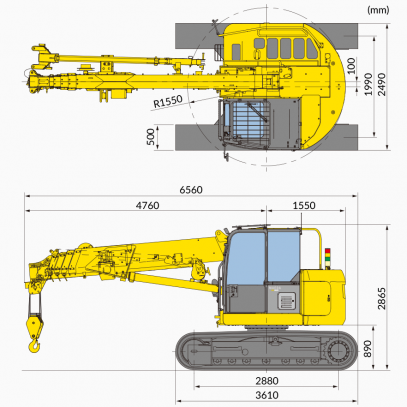

Overall length × width × height
6,560 X 2,490 X 2,865mm
Machine weight
2,000kg
Standard Equipment
Overwind protection, Hydraulic safety valve, Wire rope latch, Level, Safety lock lever, tilt alarm, EMO switch, Moment limiter, LED working status lamp, Rear view camera, data logger
Optional Equipment
Rubber pads, Single fall hook, Fly jib
* Further details, please contact PACECRANES.
† Due to improvements, the specifications are subject to change without notice.
